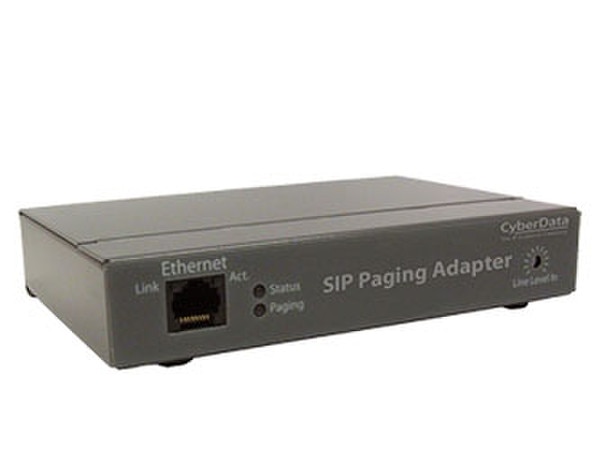

CyberData SIP PGNG ADPTR (011233)

SKU: CD-SIP-Paging-Adapter
DIMENSIONS: 6.1x4.1x1.2
MSRP: USD 478

The CyberData SIP Paging Adapter is a VoIP endpoint that interfaces analog paging systems with SIP and Multicast-based audio sources.

The SPA (SIP Paging Adapter) can be configured to support two separate SIP extensions. SIP extension one passes audio through to the analog output spoken from the caller's handset. When called, SIP extension two plays a bell audio that can be used as a night ringer when configured in a night ring group.

The SPA supports up to 9 user-loadable messages that can be played by a DTMF command. The SPA supports a line-level input for playing background music.

CyberData has maintained one of the most comprehensive lists of IP PBX servers certified to work with CyberData VoIP Products.

Features

  • Loud ringer - second SIP extension
  • Compatible with most analog amplifiers in the market
  • HTTP Command Interface
  • 10 channel prioritized Multicast ports
  • HTTP Web Interface and setup
  • Built-in diagnostics
  • Unbalanced Line-Out
  • Remote amp fault sensor
  • DTMF and programmatic controlled Relay
  • Delayed page support
  • DTMF pass-through
  • Cisco SRST
  • Rack mountable

CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase.

Should the product fail within Warranty, CyberData will repair or replace the product free of charge based on CyberData's RMA evaluation of the failure mode. These warranties include all parts and labor.

Should the product fail “Out of Warranty,” a flat rate repair charge of one half of the purchase price of the product will be assessed (or one half of MSRP if no proof-of-purchase from an authorized distributor or reseller).

Ethernet I/F10/100 Mbps
ProtocolSIP RFC 3261 Compatible
Power InputPoE 802.3af or 48VDC
Line In:
Input Signal Amplitudes
Input Impedance

2.0 VPP Maximum
10k Ohm
Line Out:
Output Signal Amplitudes
Output Level
Total Harmonic Distortion
Output Impedance

2.0 VPP Maximum
+2dBm nominal
0.5% maximum
10k Ohm
Page Port OutputBalanced 600 Ohm 5VPP
Payload TypesG.711 a-law, G.711?-law, and G.722
Operating RangeTemperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity: 5-95%, non-condensing
Storage Temperature-40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage AltitudeUp to 15,000 ft. (4573 m)
Dimensions*Length: 6.11 inches [155.19 mm]
Width: 4.05 inches [102.87 mm]
Height: 1.15 inches [29.21 mm]
Weight
Boxed Weight
1.2 lbs. [0.54 kg]
1.8 lbs. [.82 kg]
ComplianceUL 62368-1, RoHS Compliant, FCC; Part 15 Class A, IEEE 802.3 Compliant; Reference Number for UL: E129569 Vol 4 Sec 1
Warranty2 years limited
Part Number011233

*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
