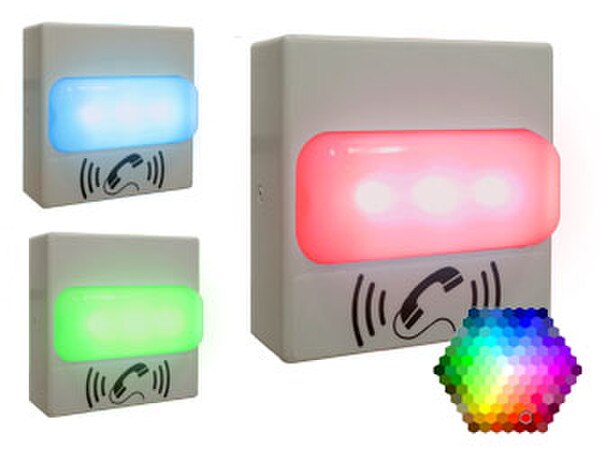

CyberData SIP RGB Strobe (011376)
The wall-mounted SIP RGB (Multi-Color) Strobe operates as a visual alerting device. The device can be set up as part of a ring group or page group with the Strobe engaged as notification of incoming calls or pages.
The SIP RGB (Multi-Color) Strobe may also be activated by being part of a Multicast group. When audio is detected on a specific Multicast address and port, the strobe will activate. Users can program or listen to up to 10 Multicast addresses.
Through a web page setup, you can have the strobe respond to message waiting signals by blinking. When the message has been heard, the strobe stops blinking.
Multiple colors, blink rate and brightness can be selected for each of the different activation methods.
Users may also utilize CyberData's HTTP command set to directly access the strobe's functions.
CyberData has maintained one of the most comprehensive list of IP PBX servers certified to work with CyberData VoIP Products.
Features
- Meets ADA requirements for telephony signaling and notification
- Multiple colors, Blink rate and brightness can be selected for each of the different activation methods
- SIP and Multicast activation
- Cisco SRST support
- Event-controlled relay
- Tamper sensor
- Web-based setup
Use Areas Include:
- Sales and support mailbox indication
- Classrooms
- Banks or financial institutions
- Court rooms
- Manufacturing warehouses
- Offices
- Indoor Only
CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase.
Should the product fail within Warranty, CyberData will repair or replace the product free of charge based on CyberData's RMA evaluation of the failure mode. These warranties include all parts and labor.
Should the product fail “Out of Warranty,” a flat rate repair charge of one half of the purchase price of the product will be assessed (or one half of MSRP if no proof-of-purchase from an authorized distributor or reseller).
| Ethernet I/F | 10/100 Mbps | |
| Protocol | SIP RFC 3261 Compatible | |
| Power Input | PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply (not included) | |
| Flash rate | 5 user-defined scenes | |
| LED MTBF | 100,000 Hours | |
| On-Board Relay | 1A @ 30 VDC | |
| Payload Types | G.711 a-law, G.711?-law, and G.722 | |
| Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing | |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) | |
| Storage Altitude | Up to 15,000 ft. (4573 m) | |
| Dimensions* | Length: 4.5 inches [115 mm] Width: 2.1 inches [55 mm] Height: 4.5 inches [115 mm] | |
| Weight Boxed Weight | 1.0 lbs. [0.45 kg] 2.0 lbs. [.90 kg] | |
| Compliance | CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant | |
| Warranty | 2 years Limited | |
| Part Number | 011376 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
