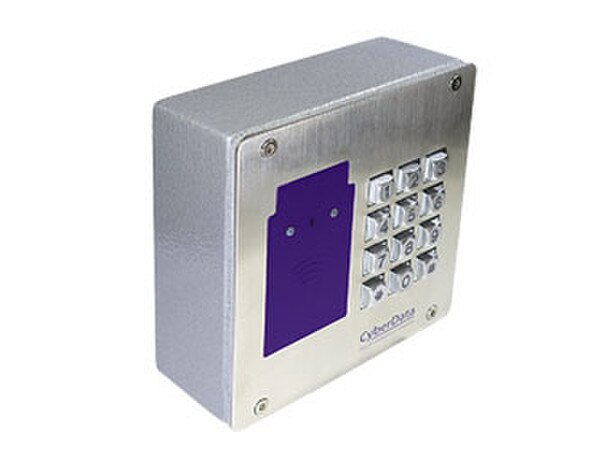

CyberData RFID/Keypad Secure Access Cntrl (011426)
The SIP-based RFID/Keypad Secure Access Control Endpoint uses the existing VoIP or PoE network infrastructure to securely unlock and lock gates or doors.
PoE powered and in a secure outdoor-rated case, the RFID/Keypad Secure Access Control Endpoint can store up to 500 access codes. There is a blacklisted code list that when activated, will make a phone call and play a pre-recorded message or can broadcast a multicast message to IP speakers when registered to the VoIP server. Good code and blacklisted code lists can be updated on the web interface or autoprovisioned by a remote server.
Security
CyberData has implemented a high level of security on its RFID products. Data between the card and the reader are encrypted using AES128 making sure that hackers would not be able to “spy” on the cards data being sent to the reader and duplicate that card to provide access.
Card Authentication
When a card is read, there is an additional security step. The reader and the card go through a complex mathematic process where they compare encrypted security keys. This process is called Mutual Authentication. It guarantees that communication between the card and the reader can never be copied and used to produce a duplicate card. On a good read, the keys will match and the reader will extract the encrypted data from the card to validate if the card is active in the system. If the keys do not match, the card will be rejected.
CyberData has maintained one of the most comprehensive list of IP PBX servers certified to work with CyberData VoIP products.
Device ships with 5 RFID cards and instructions.
Features
- Mifare Plus X 2K/4K cards are supported for a high level of encryption
- 12 key keypad
- Alert buzzer
- Red/Green lock status lights
- Can operate in standalone mode. PBX not required. Future-proof and adaptable when upgrading to new VoIP PBX
- Built in time of access scheduler
- Local and remote logging with time stamp
- NTP time support
- Network web management
- Blacklisted code alert via dialout and multicast stored message
- Network downloadable firmware
- Dry contact relay to trigger door lock or unlock gates
- Door closure and tamper alert signal
- Security Torx screws with driver kit included
CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase.
Should the product fail within Warranty, CyberData will repair or replace the product free of charge based on CyberData's RMA evaluation of the failure mode. These warranties include all parts and labor.
Should the product fail “Out of Warranty,” a flat rate repair charge of one half of the purchase price of the product will be assessed (or one half of MSRP if no proof-of-purchase from an authorized distributor or reseller).
| Ethernet I/F | 10/100 Mbps |
| Protocol | SIP RFC 3261 Compatible |
| RFID Card Protocol | ISO/IEC 14443 Type A - 13.56 MHz Standard |
| Power Input | PoE 802.3af compliant or +8 to +12VDC @ 1000mA Regulated Power Supply (not included) |
| On-Board Relay | 1A @ 30 VDC |
| Supported RFID Cards | Mifare Plus X 2K or 4K |
| Enrollment Encryption Level | Encrypted to AES 128 |
| Payload Types | G.711 a-Law, G.711 ?-Law, and G.722 |
| IP Rating | IP65 |
| Operating Range | Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing |
| Storage Temperature | -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) |
| Storage Altitude | Up to 15,000 ft. (4573 m) |
| Dimensions* | Length: 5.118 inches [130 mm] Width: 2.252 inches [57.21 mm] Height: 5.118 inches [130 mm] |
| Weight Boxed Weight | 2.0 lbs. [0.90 kg] 3.0 lbs. [1.36 kg] |
| Compliance | CE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant |
| Warranty | 2 years limited |
| Part Number | 011426 |
*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
