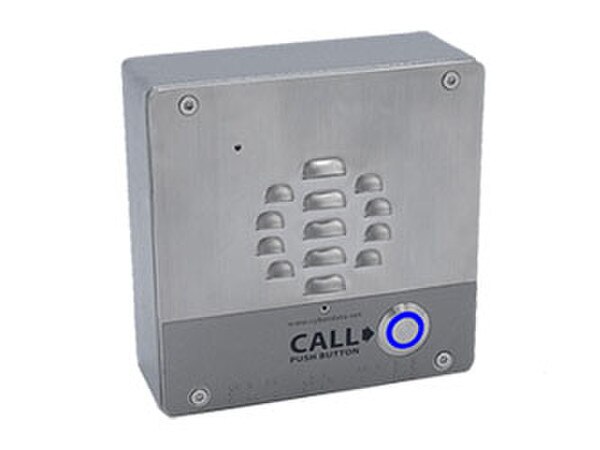

CyberData SIP Outdoor Intercom (011186)

SKU: CD-SIP Outdoor Intercom
DIMENSIONS: 5.1x2.2x5.1
MSRP: USD 649

The SIP Outdoor Intercom delivers two-way communication and secure access control for your VoIP phone system. These devices are perfect for settings such as commercial/residential facilities, schools and universities, retail establishments, warehouse and manufacturing plants, SMB, parking garages and shipyards and so much more.

CyberData has maintained one of the most comprehensive list of IP PBX servers certified to work with CyberData VoIP Products.

Features

  • TLS 1.2, Enhanced security for IP endpoints in a local or cloud based environment
  • Enhanced acoustic echo canceler
  • Full-duplex voice operation
  • Supports SRST (Survivable Remote Site Telephony) in a Cisco environment
  • Streamlined case design
  • Network web management and firmware download
  • Network adjustable speaker volume
  • Concurrent SIP and multicast paging
  • Dry relay contact for auxiliary control
  • Door closure and tamper alert signal
  • Downloadable alert, ringtones and callout messages

CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase.

Should the product fail within Warranty, CyberData will repair or replace the product free of charge based on CyberData's RMA evaluation of the failure mode. These warranties include all parts and labor.

Should the product fail “Out of Warranty,” a flat rate repair charge of one half of the purchase price of the product will be assessed (or one half of MSRP if no proof-of-purchase from an authorized distributor or reseller).

Ethernet I/F10/100 Mbps
ProtocolSIP RFC 3261 Compatible
Power InputPoE 802.3af compliant or +8 to +12VDC @ 1000mA regulated power supply (not included)
Speaker Output 2 Watts Peak Power
On-Board Relay1A @ 30 VDC
Payload TypesG.711 a-law, G.711 µ-law, G.722, and G.729
Network SecurityTLS/SSL 1.2
IP RatingIP65
Operating RangeTemperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F)
Humidity: 5-95%, non-condensing
Storage Temperature-40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F)
Storage AltitudeUp to 15,000 ft. (4573 m)
Dimensions*Length: 5.118 inches [130 mm]
Width: 2.252 inches [57.21 mm]
Height: 5.118 inches [130 mm]
Weight2.0 lbs. [0.90 kg]
Boxed Weight3.0 lbs. [1.36 kg]
ComplianceCE; EMC Directive - Class A EN 55032 & EN 55024, LV Safety Directive- EN 60950-1, RoHS Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
Warranty2 Years Limited
Part Number011186

*Dimensions are measured from the perspective of the product being upright with the front of the product facing you.
