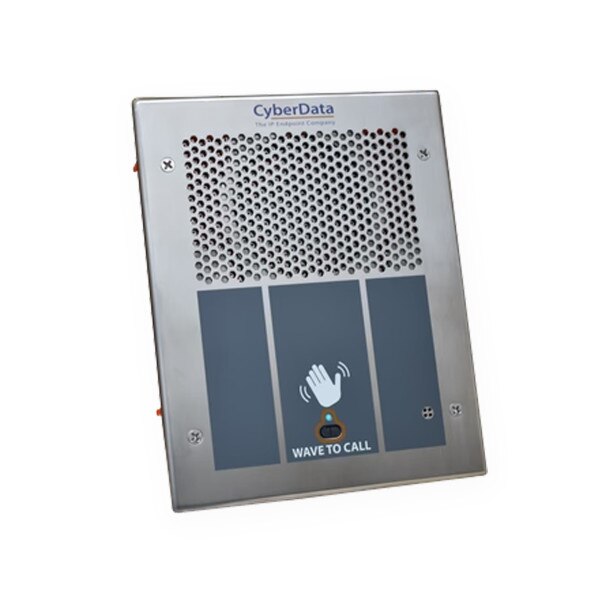

CyberData SIP Hand Wave Indoor Intercom (011530)
The SIP Hand Wave Indoor Intercom is a gesture-activated device delivering touch-free two-way communication and secure access control for your VoIP phone system.
Activated by a hand wave, this device is ideal for high-traffic settings such as medical facilities, commercial/residential facilities, schools and universities, retail establishments, warehouses, and manufacturing plants.
Activated by a hand wave, this device is ideal for high-traffic settings such as medical facilities, commercial/residential facilities, schools and universities, retail establishments, warehouses, and manufacturing plants.
- Full duplex audio with enhanced acoustic echo cancelling
- Simultaneous SIP and multicast
- Supports user-uploadable ring and alert tones
- Loud/Night Ringer function - second SIP extension
- Can receive pages directly from Poly phones as well as other devices that send standard multicast
- Touchless activation reduces spread of infectious diseases
- Distance for hand wave activation can be set for 2, 4, or 6 inches
- DTMF-controlled dry relay contact for auxiliary control
- Door closure and tamper alert signal
- Network volume control
- Supports Auxiliary Strobe Kit for visual notification
- Easy-to-clean stainless steel faceplate
- Flush mounting offers a clean streamlined installation
- TLS 1.2 and SRTP enhanced security for IP endpoints in a local or cloud-based environment
- Autoprovisioning via HTTP, HTTPS, or TFTP
- HTTPS or HTTP web based configuration. HTTPS is enabled by default.
- Configurable event generation for device health and status monitoring
- 802.11q VLAN tagging
- Web-based upgradeable firmware
- Support for Cisco SRST resiliency
CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase.
Should the product fail within Warranty, CyberData will repair or replace the product free of charge based on CyberData's RMA evaluation of the failure mode. These warranties include all parts and labor.
Should the product fail “Out of Warranty,” a flat rate repair charge of one half of the purchase price of the product will be assessed (or one half of MSRP if no proof-of-purchase from an authorized distributor or reseller).
Ethernet I/F 10/100 Mbps Protocol SIP RFC 3261 Compatible Power Input PoE 802.3af compliant or +8 to +12VDC @ 1000mA regulated power supply (not included) Speaker Output 802.3af - SPL 85dB @ 1 meter On-Board Relay 1A @ 30 VDC Payload Types G.711 a-law, G.711 µ-law, G.722, and G.729 Network Security TLS 1.2, SRTP, HTTPS Operating Range Temperature: -40 degrees C to 55 degrees C (-40 degrees F to 131 degrees F) Humidity: 5-95%, non-condensing Storage Temperature -40 degrees C to 70 degrees C (-40 degrees F to 158 degrees F) Storage Altitude Up to 15,000 ft. (4573 m) Dimensions* Length: 5.827 inches [148 mm] Width: 2.319 inches [59 mm] Height: 7.205 inches [183 mm] Weight 1.0 lbs. [0.45 kg] Boxed Weight 2.2 lbs. [1.0 kg] Compliance CE: EMC Directive – Class A EN 55032 & EN 55024, LV Safety Directive EN 62368-1; RoHS Compliant; FCC Part 15 Class A; Industry Canada ICES-3 Class A; IEEE 802.3 Compliant; TAA Compliant Warranty 2 Years Limited Part Number 011530
