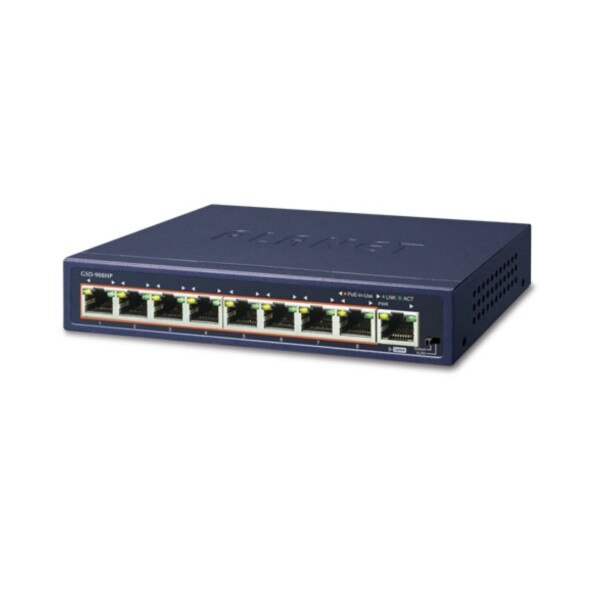

Planet GSD908HP 8-Port Gigabit 802.3 PoE Switch
PLANET GSD-908HP 8-port 10/100/1000T 802.3at Power over Ethernet Plus + 1-port 10/100/1000T Desktop Switch comes with a total PoE budget of 100 watts, which is an ideal solution to fulfill the demand of network applications with Gigabit Ethernet speed transmission for more PoE power. Its eight 802.3af/802.3at PoE+ Gigabit ports provide PoE power injector function which is able to drive 6 IEEE 802.3af compliant powered devices or 3 IEEE 802.3at compliant powered devices. The GSD-908HP also provides a simple, cost-effective and Gigabit switch performance. It comes with a metal compact housing, suitable for desktop deployment in SOHO office or department network application.
Physical Port
9-port 10/100/1000BASE-T Gigabit RJ45 copper
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus
Complies with IEEE 802.3af Power over Ethernet
Up to 8 ports of IEEE 802.3af/802.3at devices powered
Supports PoE Power up to 30.8 watts for each PoE port
Each port supports 54V DC power to PoE powered device
100-watt PoE budget
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
Switching
Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex operation
Integrates address look-up engine, supporting 2K absolute MAC addresses
9K jumbo frame supports all speeds (10/100/1000Mbps)
IEEE 802.1Q VLAN transparency
Automatic address learning and address aging
Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing
Hardware
Made of metal, desktop size and wall-mount design
LED indicators for system power, per port PoE-in-Use (Port 1 to port 8), per port Link/Act (10/100/1000Mbps, port 1 to port 9)
55V DC, 2A external power adapter
FCC, CE Class A compliant
