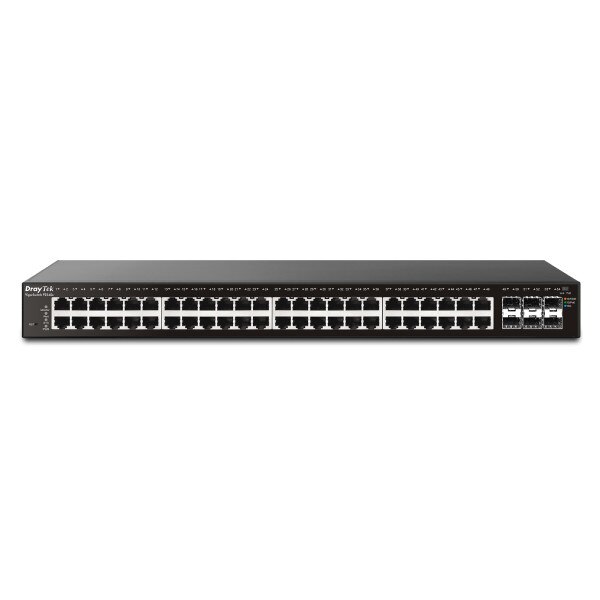

DrayTek Switch P2542x

Interface

• LAN Port 48 x 10/100/1000Mbps Ethernet, RJ-45
• 6x 1000Mbps/10Gbps SFP+ slot PoE Capable Ports
• Console Port 1x RJ-45
• Button 1x Factory Reset
• DC Power Socket
• (Backup Usage)

PoE Standards

• PoE/PoE+ (802.3af/802.3at), Type mode A
• PoE Power Budget 400 watts
• Manual, Ping Watchdog

Performance

• Buffer Size 16 Mbit
• Switching Capacity 216 Gbps
• Forwarding Rate 160.7 Mpps (64 bytes)
• MAC Address Table 32k
• Jumbo Frame Up to 12 KB

Spanning Tree

• STP,
• RSTP,
• MSTP


Link Aggregation

• Max. Number of Group 8
• Max. Number of Member in Each Group 8
• Type LACP, Static
• Traffic Load Balancing



VLAN

• Max. Number of VLAN 512
• VLAN Type
  • 802.1q Tag-based VLAN
  • MAC-based VLAN
  • Protocol-based VLAN
  • Management VLAN
  • Voice VLAN
  • Surveillance VLAN
• GVRP
• QinQ (Basic)



Layer3 Features

• Static Route
• VLAN Route
• DHCP Server



Multicast

• IGMP Snooping v2, v3(BISS)
• IGMP Querier
• MLD Snooping v1, v2
• Max. Number of Multicast Group 256
• Multicast Group Filtering / Throttling
• MVR (Multicast VLAN Registration)



ONVIF Surveillance

• Discovery
• Surveillance Topology
• Real-Time Video Streaming
• ONVIF Device Maintenance
  • Device Info
  • Network Settings
  • Time Settings
  • Reboot
  • Reset to Factory Default



QoS

• Number of QoS Queues 8
• Queue Schedule SPQ, WRR
• CoS (Class of Service)
  • CoS
  • DSCP
  • CoS-DSCP
  • IP Precedence
• Rate Limiting



Security

• Authentication Server RADIUS, TACACS+
• 802.1X/MAC Authentication
• IP Source Guard
• Traffic Control DoS Defense, Storm Control
• Dynamic ARP Inspection (DAI)
• DHCP Snooping
• IP Conflict Prevention
• Loop Protection



Management

• Local Service: HTTP, HTTPS, Telnet, SSH v2
• Config Backup/Restore
• Dual Image
• 2-Level Administration Privilege
• Access Control Access List
• OpenVPN Client
• sFlow
• SNMP v1, v2c, v3
• RMON Group 1, 2, 3, 9
• SNTP (Simple Network Time Protocol)
• LLDP
• LLDP-MED
• Mail Alert
  • Port Status
  • Port Speed
  • System Restart
  • IP Conflict
  • Hardware Monitor
  • Device Check
  • ONVIF IP Cam Snapshot
• VigorRouter Management (SWM)
• VigorACS Management (Since f/w) V3.2.0

Physical

• Rack Mountable 1U
• Power Input AC 100-240V @ 0.7A
• Backup Power Input DC 12V @ 4.8A
• Max. Power Consumption (watts) 64.2
• Dimension (mm) 440 x 281 x 44
• Operating Temperature 0 to 50°C
• Storage Temperature -20 to 70°C
• Operating Humidity (non-condensing) 10 to 90%
• Storage Humidity (non-condensing) 5 to 90%
