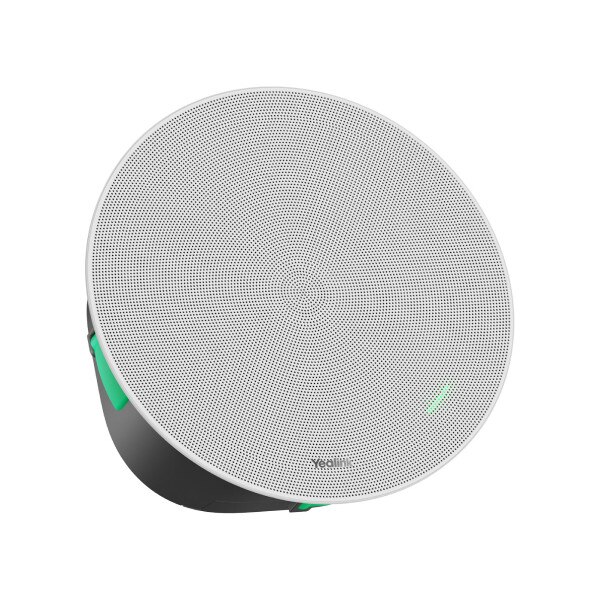

Yealink CS10 Ceiling Speaker
Ceiling SpeakerThe Yealink CS10-D, a low-profile (120mm) 2-way coaxial Dante network speaker, excels in video conferencing with its exceptional audio performance. Designed specifically for the modern meeting environment, the CS10 -D blends high-quality audio with an elegant, minimalist design, making it a perfect match for contemporary conference rooms.Versatile and engineered for ease of use, the CS10-D is a PoE-enabled speaker that can optionally deployed with variety supplementary components, simplifying installation across diverse ceiling types. Its covert design, establishes the CS10-D as more than just a speaker – it is an essential addition to your meeting space, enhancing both visual and auditory experiences.The CS10-D is not just a functional device for your conference room; it's a statement of elegance and technological prowess, representing the ideal audio solution for your professional needs.
Package Content• CS10-D Speaker• White Mesh Cover (Black Optional)• Quick Start Guide• Assembly Fixing Bracket• Dust Cover• Deployment Instruction Template• Bracing Bridge• Dust Cover Screw × 6 (M3 × 4CMHOZN3)
Audio Specifications• Frequency Response (-6dB): 100-20kHz• Maximum SPL: • Continuous: 99dB @20W 1m • Sensitivity: 88dB@1m 1W
Speaker Specification• LF: 5.7 inch (145 mm) woofer• HF: 1.1 inch (28 mm) tweeter• Nominal Impedance: 8Ω• Nominal Coverage Angle: 120
Product Specifications• Size:- ф294 × H125.8mm (with cover mesh)- ф287.2 × H125mm (without cover mesh)• Weight:- 2808g (without cover mesh);- 207g (Cover mesh)• Product Color: white/black• Cover Mesh Color: white/black• Product Materials:- Cover Mesh: PC/ABS Welded SPCC- Main Body Shell: PA (Polyamide) with 15% GF- Bottom Shell: aluminum alloy- Cover Plate: PC/ABS and SGCC• Plenum Rated UL 2043 (suitable for air handling spaces)
Physical Specifications• Operating Temperature: 0-50°C• Storage Temperature: 0-50°C• Operating Humidity: 5%~90%• Rated Power: 24W (20W typical power)• Power Supply: PoE+ (IEEE 802.3at class 4)• Interface: 1 × RJ-45
Logistic Information• Canton Size: 398 mm × 355 mm × 185mm• N.W/CTN: 4.628 kg• G.W/CTN: 5.597 kg
